WATER TREATMENT PLANT

The Pressure Sand Filter/Multigrade Sand Filter is a depth filter that makes use of coarse and fine media mixed together in a fixed proportion. This arrangement produces a filter bed with adequate pore dimensions for retaining both large and small suspended particles. This filter performs at a substantially higher specific flow rate than conventional filters. Specific flow rates of 15 – 30 M/Hr. have been successfully obtained for treating water containing 50-25ppm suspended solids respectively to produce a filtrate with less than 5ppm. The Multigrade sand filter can handle feed water upto 25 NTU turbidity and the treated water from this range of filters will have <2 NTU..

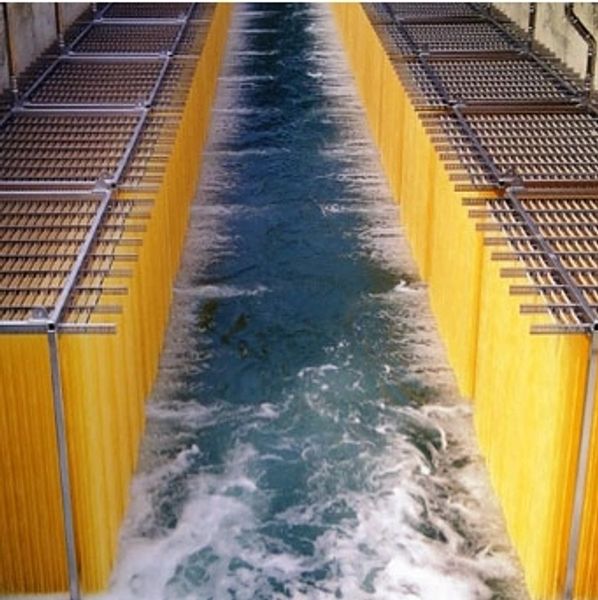

  WHY INTEGRATED FIXED-FILM ACTIVATED SLUDGE - IFAS

Integrated Fixed-film Activated Sludge (IFAS) Technology provides for additional biomass within a wastewater treatment facility in order to meet more stringent effluent parameters or increased loadings without the direct need for additional tankage. Industry practice for upgrading wastewater treatment plants usually focuses on increasing the bioreactor volume to provide the additional bacterial population required to meet the system’s kinetic needs. However, designers often encounter clarifier solids loading limitations that put an upper limit on the amount of biomass that can be carried in the suspended growth system. The advantage of biofilm processes compared to activated sludge processes is that the anaerobic, anoxic and aerobic zones can be combined in a single stage (see also rotating biological contactor, and anammox). IFAS systems allow for the additional bacterial population to exist on a fixed surface, thereby eliminating the need to increase the suspended growth population.

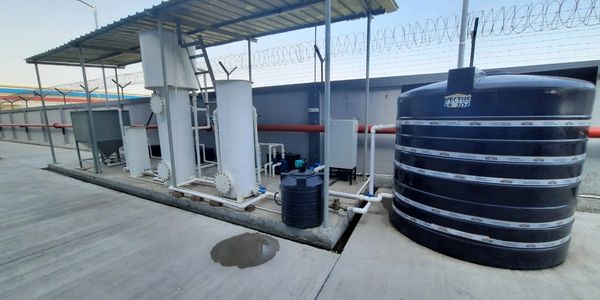

 KANAK ENTERPRISE Design, Manufacture, Supply, Erection and Commissioning Effluent Treatment Plant (ETP) on Turnkey basis for various types and natures of wastewaters, effluents which combines advanced physico-chemical treatment processes with tertiary polishing system for the removal of organic, inorganic, oil and grease, heavy metals & suspended solids. The principle of operation of ETP is Physico-Chemical treatment followed by Polishing Treatments like –Sand Filtration, Activated Charcoal treatment (Adsorption), Ozonisation (Chemical Oxidation), Ultra Filtration (UF), Reverse Osmosis (RO) and evaporation (If required).
